High Quality Lag luam wholesale Muaj ACS npauj npaim valve Tuam Tshoj Hoobkas tsum Chaw tsim tshuaj paus

Lus piav qhia luv luv:

ACS npauj npaim valve, Resilent zaum npauj npaim li qub li qub, hlua nrog lub tes tsho roj hmab.

Centric ncej txoj hauj lwm, 100% bi-directional npuas nruj

Pinless disc tsim los tiv thaiv cov xau ntawm lub disc

Compact tsim thiab qauv yooj yim

Kev kho yooj yim nrog cov khoom hloov tau

Wafer hom ntawm flanges ntawm ntau yam qauv

NPS 1.5 "-24" Mounted ntawm flanges ANSI B16.1, ASME B16.5

Txoj kab uas hla 40mm - 600mm ntawm flanges EN1092 PN10, PN16, PN25

Tus qauv tsim: API 609, BS EN 593, MSS SP-67.

Lub ntsej muag-rau-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.

NORTECHis ib qho ntawm Tuam Tshoj ACS npauj npaim valveResilient seated Npauj Npaim Valve lug homChaw tsim tshuaj paus & tsum.


Product Detail

Khoom cim npe

ACS npauj npaim valve yog dab tsi?

ACS Npauj Npaim Valve, Resilient Seated Npauj Npaim Valve, tseem hu ua "concentric", "rubber lined" thiab "rubber seated" npauj npaim valve, muaj roj hmab (los yog resilient) lub rooj zaum ntawm sab nraud txoj kab uas hla ntawm lub disc thiab sab hauv phab ntsa ntawm lub valve.

Npauj npaim valve yog lub quarter-tig valve uas tig 90 degrees kom qhib lossis kaw cov xov xwm ntws.Nws muaj lub voj voog ncig, tseem hu ua npauj npaim, pom nyob rau hauv nruab nrab ntawm lub cev uas ua haujlwm raws li lub kaw lus ntawm lub valve.Lub disc txuas nrog lub actuator los yog kov los ntawm lub ncej, uas mus los ntawm lub disc mus rau sab saum toj ntawm lub valve lub cev.

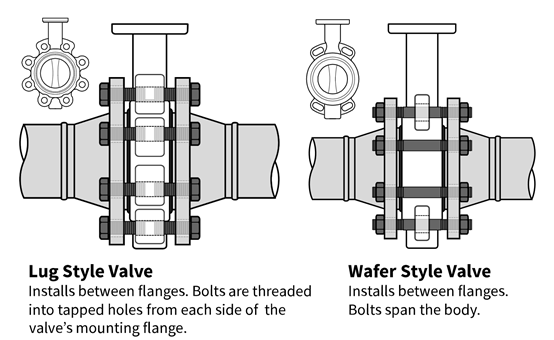

Resilient Seated Npauj Npaim Valve Lug hom,tus qauv compact tshaj plaws nrog lub ntsej muag luv luv rau lub ntsej muag.it haum ntawm ob lub flanges, nrog studs dhau los ntawm ib qho flange los ntawm lwm yam.Lub valve yog tuav nyob rau hauv qhov chaw thiab kaw nrog gasket los ntawm qhov nro ntawm studs.A resilient zaum npauj npaim valve lug hom yog lub teeb yuag, txij nkawm-dawb, nqi-zoo, thiab txhim khu kev qha tshuaj rau ntau yam kev siv.

Resilient Seated Npauj Npaim Valve Lug hom,feem ntau yog siv qhov twg lub valve yog qhov kawg ntawm cov yeeb nkab vim tsis muaj 2nd flange kom ruaj ntseg cov studs.Es tsis txhob, lugs raug nrum rau ntawm lub valve nrog tapping qhov uas phim cov ntsia liaj qhov rooj qauv rau qhov loj thiab siab faib ntawm lub flange.Bolts tau dhau los ntawm flange qhov thiab yog threaded rau hauv tapping qhov ntawm lub lug.

Lub ntsiab nta ntawm NORTECH ACS npauj npaim valve

Vim li casYUAV UA LI CAS?

  • Quality thiab kev pab cuam: ntau tshaj 20 xyoo ntawm kev paub ntawm OEM / ODM cov kev pab cuam rau cov European valve tuam txhab uas muag.
  • Quick tus me nyuam, npaj rau cov zaub mov xa tuaj 1-4 lub lis piam, nrog rau kev txiav txim siab ntawm cov rooj zaum npauj npaim li qub thiab cov khoom siv
  • Quality lav 12- 24 lub hlis rau cov rooj zaum npauj npaim li qub
  • Quality tswj rau txhua daim ntawm npauj npaim valve

Cov yam ntxwv tseem ceeb ntawm ACS npauj npaim valve

  • Kev tsim kho kom haum ua rau muaj qhov hnyav, tsawg qhov chaw hauv kev cia thiab kev teeb tsa.
  • Centric ncej txoj hauj lwm, 100% bi-directional npuas nruj, uas ua rau installation tau ntawm txhua qhov kev taw qhia.
  • Tag nrho lub cev bore muab tsis tshua muaj zog txaus.
  • Kev khiav hauj lwm torques qis ua rau kev ua haujlwm yooj yim thiab kev xaiv tus actuator kev lag luam.
  • PTFE lined bearings yog tsim los tiv thaiv kev sib txhuam thiab hnav, tsis tas yuav lubrication.
  • Ntxig hauv ob sab phlu rau lub cev, liner yooj yim los hloov, tsis muaj corrosion ntawm lub cev thiab hauv ob sab phlu, haum rau qhov kawg ntawm kab siv.

Resilient zaum npauj npaim valve lug homtsim nta ntawm pinless disc

Hom kev ua haujlwm rau Resilient zaum npauj npaim li qub lug hom

tuav lever
  • Npauj npaim valve PN10/16, Class125/150 DN32-DN200
  • Npauj npaim valve PN25, DN32-DN150
Phau ntawv gearbox
  • Tag nrho ntau yam ntawm DN32-DN600
Pneumatic actuator
  • Pneumatic actuator ob chav ua yeeb yam (DA)
  • Pneumatic actuator caij nplooj ntoos hlav rov qab (SR)
Hluav taws xob actuator
  • On-off hom hluav taws xob actuator
  • Modulating actuator
  • Dej pov thawj
  • Cov pov thawj tawg
Dawb qia ISO5211 mouting ncoo
  • qia dimension thiab ISO flange customized raws li kev thov ntawm cov neeg siv khoom.
reslient-seated-butterfly-valve-lug-type-02
splined-ncej

Precision splined ncej

Rau txoj kab uas hla DN32-DN350

rubber-sleeve-seat-design

Moulded roj hmab tes tsho

hexagon-ncej

Hexagon ncej

Rau txoj kab uas hla DN400 thiab siab dua

reslient-seated-butterfly-valve-lug-type-01
lever
manual-iav
pneumatic-actuator
hluav taws xob-actuator
dawb-stem

Technical specification ntawm ACS npauj npaim valve

Qauv:

Tsim thiab Chaw Tsim Khoom API609/EN593
ntsej muag ISO 5752 / EN558-1 series 20
Flange kawg ISO1092 PN6/PN10/PN16/PN25, ANSI B16.1/ANSI B 16.5 125/150
Kev ntsuas siab PN6 / PN6 / PN16 / PN25, ANSI Chav Kawm 125/150
Kev kuaj thiab tshuaj xyuas API598/EN12266/ISO5208
Actuator mounting ncoo ISO 5211

Cov khoom siv tseem ceebntawm resilient zaum npauj npaim li qub lug hom:

Yam khoom Khoom siv
Lub cev Ductile hlau, carbon hlau, stainless hlau, duplex stainless hlau, Monel, Alu-bronze
Disc Hlau nickel coated, ductile hlau nylon coated / Alu-bronze / stainless hlau / duplex / Monel / Hasterlloy
Liner EPDM / NBR / FPM / PTFE / Hypalon
Qe Stainless hlau / Monel / Duplex
Bushing PTFE
Bolts Stainless hlau

Valve lub cev cov ntaub ntawvntawm resilient zaum npauj npaim li qub

Hlau hlau
  • TUG 40/50
  • GGG40.3 (kub kho)
  • ASTM A536 60-40-18 Cov
  • BS2789 400-18
  • Kev thov dav dav
  • Kev siv hnyav, kev siv txias, kev lag luam petrochemical, chaw nres tsheb fais fab
Stainless hlau
  • ASTM A 351 CF8 / CF8M Txheem:
  • Duplex UB6/31803
  • Tshuaj, khoom noj, haus
Alu-bronze
  • ASTM B584 C95400 Cov
  • BS 1400 LG1
  • DIN 1705 (RG10)
  • Marine Service

Valve disc cov ntaub ntawvntawm resilient zaum npauj npaim valve lug hom

Hlau nickel coated
  • TUG 40/50
  • GGG40.3 (kub kho)
  • ASTM A536 60-40-18 Cov
  • BS2789 400-18
  • Cua, tsis corrosive kub los yog dej txias
Cov hlau nylon coated
  • TUG 40/50
  • GGG40.3 (kub kho)
  • ASTM A536 60-40-18 Cov
  • BS2789 400-18
  • Cov dej haus, dej (max. 70 ° C, PH tus nqi ntawm 4.5 txog 9)
Hlau PTFE lined
  • TUG 40/50
  • GGG40.3 (kub kho)
  • ASTM A536 60-40-18 Cov
  • BS2789 400-18
  • Acids, alkali, roj, dej, cua
Stainless hlau
  • ASTM A 351 CF8 / CF8M Txheem:
  • Cov dej haus, dej demineralized, cov kuab tshuaj, cov dej ua haujlwm
Duplex stainless hlau
  • Duplex UB6/31803
  • Cov dej haus, dej txias, dej hiav txwv, dej demineralized, kuab tshuaj, khoom noj khoom haus
Alu-bronze
  • ASTM B584 C95400 Cov
  • BS 1400 AB 2
  • DIN 1714-CuAl10Ni
  • Dej hiav txwv, dej haus, roj
Hasterlloy-C
  • CW-12MW A494
  • Phosphoric, hypochloric, acetic, formic, sulfurous


Khoom siv: ACS npauj npaim valve

Qhov twg yog qhov resilient zaum npauj npaim valve wafer hom siv?

ACS npauj npaim valve Resilient zaum npauj npaim valve wafer hom yog dav siv nyob rau hauv

  • Cov chaw kho dej thiab khib nyiab pov tseg
  • Ntawv, textiles thiab qab zib kev lag luam
  • Compressed cua, roj thiab desulphurization nroj tsuag
  • Brewing, distilling, thiab chemical txheej txheem kev lag luam
  • Kev thauj mus los thiab kev tuav cov khoom qhuav
  • Kev lag luam fais fab

Resilient zaum npauj npaim li qub tau ntawv pov thawj nrogWRAShauv UK thiabACS hauv Fabkis, tshwj xeeb tshaj yog rau cov dej ua haujlwm.

ACS
wras

Kev lees paub ntawm Conformité Sanitaire

(ACS)

Txoj Cai Tswjfwm Tswv Yim Txog Dej

(WRAS)
