Ob Chav Flange Npauj Npaim Valve
Dab tsi yog Ob Chav flange npauj npaim li qub
Ob Chav Flange Npauj Npaim Valveyog hom resilient seated npauj npaim li qub, nrog cov flanges integral cam khwb cia rau ob qho kawg.
Ib yam li lwm cov npauj npaim valves, nws yog lub valve ib feem plaub uas tig 90 degrees los qhib lossis kaw cov dej ntws. Nws muaj lub disc ncig, tseem hu ua npauj npaim, pom nyob rau hauv nruab nrab ntawm lub cev uas ua haujlwm ua lub tshuab kaw ntawm lub valve. Lub disc txuas nrog lub actuator lossis kov los ntawm lub qhov, uas mus los ntawm lub disc mus rau sab saum toj ntawm lub cev valve.
Lub valve npauj npaim kuj tseem siv ua lub valve tswj kev ntws, yog tias lub disc tsis tig mus rau ib lub quarter-tig tag nrho, nws txhais tau tias lub valve qhib ib nrab, peb tuaj yeem tswj kev ntws ntawm cov kua dej los ntawm ntau lub kaum sab qhib.
(Daim ntawv qhia CV/KV ntawm lub valve uas muaj zog thiab ruaj khov muaj nyob rau ntawm qhov kev thov)
NORTECH Ob Chav Flange Npauj Npaim Valveyog tsim los nrog lub ntsej muag ntev rau lub ntsej muag, raws li EN558-1 series 13. nws tuaj yeem siv rau hauv ntau daim ntawv thov dav dav xws li kev faib dej, kev kho dej, pas dej, cov chaw tsim hluav taws xob thiab ntau lwm yam. Lub valve tuaj yeem siv ua lub hau, lub kais rau kev tso tawm ntawm qhov kawg ntawm cov kav dej, qhib / kaw thiab tswj kev ntws.
rau cov kav dej loj, ob chav flange npauj npaim li qub yog siv dav.
Cov yam ntxwv tseem ceeb ntawm Ob chav flange npauj npaim li qub
Ob Chav FlangeNpauj Npaim Valve cov yam ntxwv tsim ntawm pinless disc
UA LI CASXAIV PEB?
- Qqhov zoo thiab kev pabcuam: ntau tshaj 20 xyoo ntawm kev paub txog OEM / ODM cov kev pabcuam rau cov tuam txhab valve European ua lag luam.
- QKev xa khoom sai, npaj txhij rau kev xa khoom 1-4 lub lis piam, nrog rau cov khoom lag luam ntawm cov li qub thiab cov khoom siv uas muaj zog
- QKev lav zoo 12- 24 lub hlis rau cov li qub uas muaj zog
- QKev tswj xyuas zoo rau txhua daim ntawm lub valve npauj npaim
Cov yam ntxwv tseem ceeb ntawm Ob Chav FlangeNpauj Npaim Valve
- Kev tsim kho me me ua rau muaj qhov hnyav tsawg, qhov chaw tsawg dua hauv kev khaws cia thiab kev teeb tsa.
- Qhov chaw ntawm lub ncej centric, 100% bi-directional npuas nruj, uas ua rau kev teeb tsa tau txais ntawm txhua qhov kev taw qhia.
- ISO 5211 sab saum toj flange yog yooj yim rau kev yooj yim automation thiab retrofitting ntawm actuator.
-
Lub cev puv nkaus muab kev tiv thaiv qis rau kev ntws.
-
Tsis muaj qhov hauv cov dej ntws, uas ua rau nws yooj yim los ntxuav thiab tua kab mob rau cov dej haus thiab lwm yam.
- Cov roj hmab uas muaj txheej sab hauv lub cev ua rau cov kua dej tsis txhob kov lub cev.
- Kev tsim lub disc uas tsis mob yog qhov pab tau kom tiv thaiv qhov xau ntawm lub disc.
- Cov torques ua haujlwm tsawg ua rau kev ua haujlwm yooj yim thiab kev xaiv actuator pheej yig.
- PTFE lined bearings yog tsim los rau kev tiv thaiv kev sib txhuam thiab hnav, tsis tas yuav lubrication.
- Lub rooj zaum roj hmab sib txuas, vulcanised ntawm lub cev, nws ruaj khov thiab haum rau daim ntawv thov nqus tsev thiab siv kawg ntawm kab.
thov saibpeb cov catalog ntawm npauj npaim li qubkom paub meej ntxiv lossis tiv tauj peb pab neeg muag khoom ncaj qha.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Tsim thiab Siv Khoom Txuj Ci: API609/EN593
Ntsej muag rau ntsej muag: ISO5752 / EN558-1 series 13
Flange kawg EN1092-2 PN10/PN16/PN25, ANSI 125/150
DN 50mm-1200mm
Lub cev: Hlau zas / carbon hlau / stainless hlau / Alu-tooj liab
Disc: Hlau zas / carbon hlau / stainless hlau / Alu-tooj liab
Lub Rooj: EPDM/NBR/FKM/Silicone
Tsim tsis muaj tus pin
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Hom Kev Ua Haujlwm rauNcuav mog qab zibNpauj Npaim Valve
| Tus kov |
|
| Lub thawv iav tes |
|
| Pneumatic actuator |
|
| Lub tshuab hluav taws xob |
|
| Dawb qia ISO5211 mouting ncoo |
|
Kev qhia tshwj xeeb ntawm ob chav flange npauj npaim valve
Cov Qauv:
| Tsim thiab Chaw Tsim Khoom | API609/EN593 |
| Lub ntsej muag rau lub ntsej muag | ISO5752/EN558-1 series 13 |
| Qhov kawg ntawm flange | ISO1092 PN6/PN10/PN16/PN25, ANSI B16.1/ANSI B 16.5 125/150 |
| Kev ntsuas siab | PN6/PN6/PN16/PN25, ANSI Chav Kawm 125/150 |
| Kev Ntsuas thiab Kev Tshuaj Xyuas | API598/EN12266/ISO5208 |
| Actuator Mounting ncoo | ISO5211 |
Cov ntaub ntawv tseem ceebntawm Ob chav flangeNpauj Npaim Valve:
| Cov Khoom | Cov ntaub ntawv |
| Lub cev | Hlau zas, hlau carbon, hlau tsis xeb, hlau tsis xeb duplex, Monel, Alu-tooj liab |
| Lub disc | Cov hlau zas nickel coated, cov hlau zas nylon coated / Alu-tooj liab / stainless hlau / duplex / Monel / Hasterlloy |
| Cov ntaub thaiv kab | EPDM/NBR/FPM/PTFE/Hypalon |
| Qia | Hlau tsis xeb / Monel / Duplex |
| Bushing | PTFE |
| Cov ntsia hlau | Cov hlau tsis xeb |

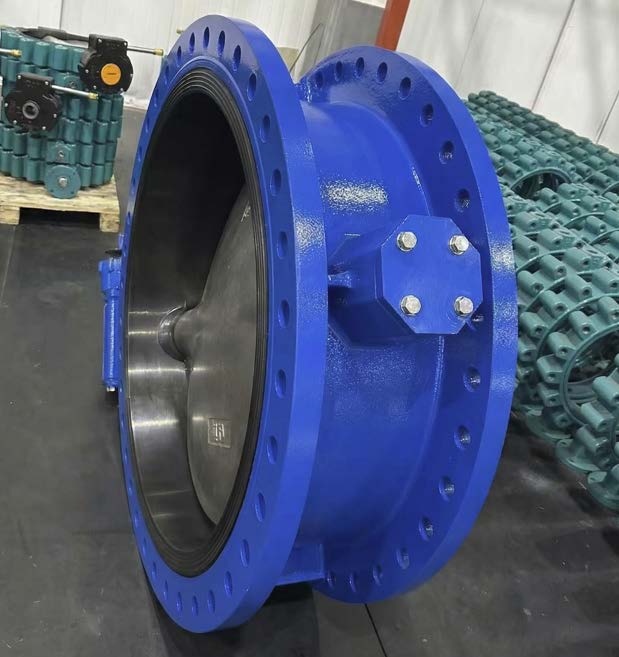

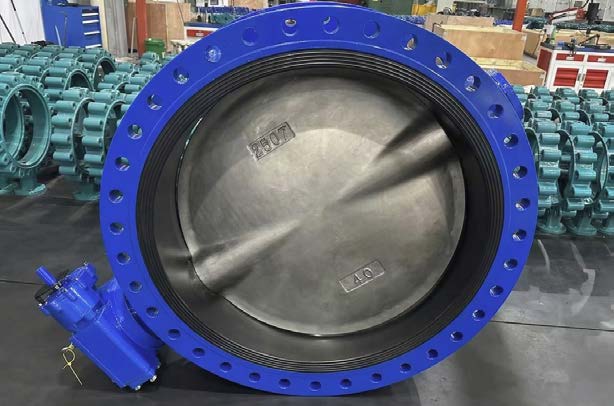

Cov khoom qhia
Daim Ntawv Thov Khoom:
Qhov twg yog qhov siv ob lub flange npauj npaim li qub?
Ob chav flange npauj npaim li qub,ib yam li lwm yamlub valve uas muaj zog thiab ruaj khov,yog siv dav hauv
- Cov chaw kho dej thiab cov khib nyiab pov tseg
- Kev lag luam ntawv, textiles thiab qab zib
- Kev lag luam tsim kho, thiab kev tsim khoom siv drilling
- Kev cua sov, cua txias, thiab kev ncig dej txias
- Pneumatic conveyors, thiab cov ntawv thov nqus tsev
- Cov nroj tsuag compressed cua, roj thiab desulphurization
- Kev lag luam ua cawv, distillation, thiab kev lag luam tshuaj lom neeg
- Kev Thauj Mus Los thiab Kev Thauj Khoom Qhuav
- Kev lag luam fais fab
Cov npauj npaim valve uas muaj zog thiab ruaj khov tau ntawv pov thawj nrogWRAShauv UK thiabACSnyob rau Fabkis teb, tshwj xeeb tshaj yog rau cov dej ua haujlwm.
