Zoo siab Pneumatic npauj npaim valve wafer hom Tuam Tshoj Hoobkas khoom Chaw tsim tshuaj paus

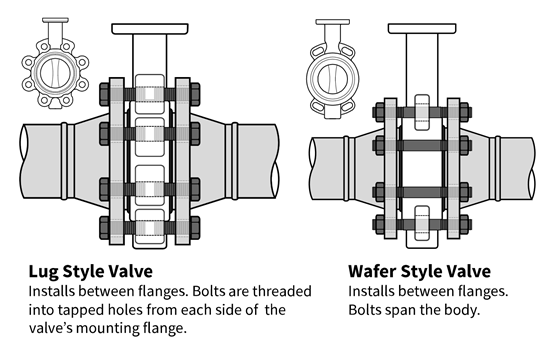

Dab tsi yog Pneumatic npauj npaim valve wafer hom?
Pneumatic npauj npaim valve wafer hom , kuj hu ua "concentric", "roj hmab lined" thiab "roj hmab zaum" npauj npaim valve, muaj lub rooj zaum roj hmab (lossis resilient) ntawm lub cheeb sab nraud ntawm lub disc thiab phab ntsa sab hauv ntawm lub valve.
Lub valve npauj npaim yog lub valve ib feem plaub uas tig 90 degrees los qhib lossis kaw cov dej ntws. Nws muaj lub disc puag ncig, tseem hu ua npauj npaim, nyob hauv nruab nrab ntawm lub cev uas ua haujlwm ua lub kaw mechanism ntawm lub valve. Lub disc txuas nrog lub actuator lossis kov los ntawm lub qhov, uas mus los ntawm lub disc mus rau sab saum toj ntawm lub cev valve.
Lub valve npauj npaim kuj tseem siv ua lub valve tswj kev ntws, yog tias lub disc tsis tig mus rau ib lub quarter-tig tag nrho, nws txhais tau tias lub valve qhib ib nrab,peb tuaj yeem tswj cov dej ntws los ntawm ntau lub kaum sab qhib.
(Daim ntawv qhia CV/KV ntawm lub valve uas muaj zog thiab ruaj khov muaj nyob rau ntawm qhov kev thov)
Cov yam ntxwv tseem ceeb ntawm NORTECH Pneumatic npauj npaim valve wafer hom
Ncuav mog qab zibNpauj Npaim Valve cov yam ntxwv tsim ntawm pinless disc
Cov yam ntxwv tseem ceeb ntawmNcuav mog qab zibNpauj Npaim Valve
- Kev tsim kho me me ua rau muaj qhov hnyav tsawg, qhov chaw tsawg dua hauv kev khaws cia thiab kev teeb tsa.
- Qhov chaw ntawm lub ncej centric, 100% bi-directional npuas nruj, uas ua rau kev teeb tsa tau txais ntawm txhua qhov kev taw qhia.
- ISO 5211 sab saum toj flange yog yooj yim rau kev yooj yim automation thiab retrofitting ntawm actuator.
- Muab sab hauv ntxig rau hauv lub cev, daim ntaub yooj yim hloov, tsis muaj xeb ntawm lub cev thiab daim ntaub, tsim nyog rau kev siv kawg ntawm kab.
Precision splined shaft
tsim rau txoj kab uas hla DN32-DN350
Lub tes tsho roj hmab molded
Hexagon Ncej tsim
rau txoj kab uas hla DN400 thiab siab dua
thov saibpeb cov catalog ntawm npauj npaim li qubkom paub meej ntxiv lossis tiv tauj peb pab neeg muag khoom ncaj qha.
Kev qhia txog kev siv Pneumatic npauj npaim valve wafer hom
Cov Qauv:
| Tsim thiab Chaw Tsim Khoom | API609/EN593 |
| Lub ntsej muag rau lub ntsej muag | ISO5752/EN558-1 series 20 |
| Qhov kawg ntawm flange | ISO1092 PN6/PN10/PN16/PN25, ANSI B16.1/ANSI B 16.5 125/150 |
| Kev ntsuas siab | PN6/PN6/PN16/PN25, ANSI Chav Kawm 125/150 |
| Kev Ntsuas thiab Kev Tshuaj Xyuas | API598/EN12266/ISO5208 |
| Actuator Mounting ncoo | ISO5211 |
Cov ntaub ntawv tseem ceeb of Ncuav mog qab zibNpauj Npaim Valve:
| Cov Khoom | Cov ntaub ntawv |
| Lub cev | Hlau zas, hlau carbon, hlau tsis xeb, hlau tsis xeb duplex, Monel, Alu-tooj liab |
| Lub disc | Cov hlau zas nickel coated, cov hlau zas nylon coated / Alu-tooj liab / stainless hlau / duplex / Monel / Hasterlloy |
| Cov ntaub thaiv kab | EPDM/NBR/FPM/PTFE/Hypalon |
| Qia | Hlau tsis xeb / Monel / Duplex |
| Bushing | PTFE |
| Cov ntsia hlau | Cov hlau tsis xeb |
Daim Ntawv Thov Khoom: Pneumatic npauj npaim valve wafer hom
Cov hom wafer uas siv tau rau ntawm lub qhov rooj uas muaj zog thiab ruaj khov yog siv rau qhov twg?
Pneumatic npauj npaim valve wafer hom yog siv dav hauv
- Cov chaw kho dej thiab cov khib nyiab pov tseg
- Kev lag luam ntawv, textiles thiab qab zib
- Cov nroj tsuag compressed cua, roj thiab desulphurization
- Kev lag luam ua cawv, distillation, thiab kev lag luam tshuaj lom neeg
- Kev Thauj Mus Los thiab Kev Thauj Khoom Qhuav
- Kev lag luam fais fab
Cov npauj npaim valve uas muaj zog thiab ruaj khov tau ntawv pov thawj nrogWRAShauv UK thiabACSnyob rau Fabkis teb, tshwj xeeb tshaj yog rau cov dej ua haujlwm.
Kev lees paub ntawm Conformité Sanitaire
(ACS)
Txoj Cai Tswjfwm Dej
(WRAS)
