Hluav taws xob npauj npaim valve chaw tsim tshuaj paus Tuam Tshoj DN50 DN1200 Siab Zoo nrog WRAS ntawv pov thawj
Dab tsi yog Hluav Taws Xob Npauj Npaim Valve?
Npauj Npaim Valve, tseem hu ua "concentric", "rubber lined" thiab "rubber seated" npauj npaim valve, muaj roj hmab (los yog resilient) lub rooj zaum nruab nrab ntawm sab nraud txoj kab uas hla ntawm lub disc thiab sab hauv phab ntsa ntawm lub valve.
Npauj npaim valve yog lub quarter-tig valve uas tig 90 degrees kom qhib lossis kaw cov xov xwm ntws.Nws muaj lub voj voog ncig, tseem hu ua npauj npaim, pom nyob rau hauv nruab nrab ntawm lub cev uas ua haujlwm raws li lub kaw lus ntawm lub valve.Lub disc txuas nrog lub actuator los yog kov los ntawm lub ncej, uas mus los ntawm lub disc mus rau sab saum toj ntawm lub valve lub cev.
Lub zog ntawm lub disc yuav txiav txim siab txoj haujlwm ntawm npauj npaim valve.Tnws resilient zaum npauj npaim valve wafer hom tuaj yeem ua haujlwm raws li kev cais tawm yog tias lub disc tig tag nrho 90-degree tig, lub valve tau qhib lossis kaw.

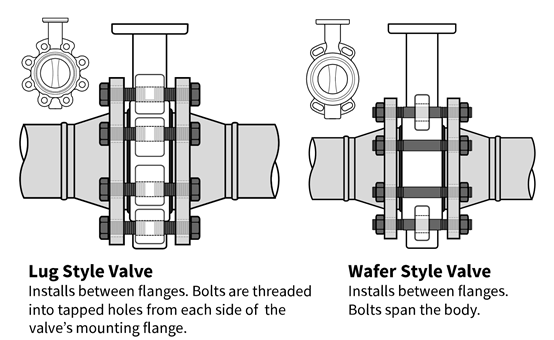

Hluav taws xob npauj npaim Valve,tus qauv compact tshaj plaws nrog lub ntsej muag luv luv.nws haum ntawm ob flanges, nrog studs dhau los ntawm ib tug flange mus rau lwm yam.Lub valve yog tuav nyob rau hauv qhov chaw thiab kaw nrog gasket los ntawm qhov nro ntawm studs.Ib tug resilient zaum npauj npaim valve wafer hom yog lub teeb yuag, tsis muaj kev saib xyuas, tsis muaj nqi, thiab txhim khu kev qha rau ntau yam kev siv.
Lub ntsiab nta ntawm NORTECH Hluav taws xob npauj npaim valve wafer hom
Vim li casYUAV UA LI CAS?
- Quality thiab kev pab cuam: ntau tshaj 20 xyoo ntawm kev paub ntawm OEM / ODM cov kev pab cuam rau cov European valve tuam txhab uas muag.
- Quick tus me nyuam, npaj rau cov zaub mov xa tuaj 1-4 lub lis piam, nrog rau kev txiav txim siab ntawm cov rooj zaum npauj npaim li qub thiab cov khoom siv
- Quality lav 12- 24 lub hlis rau cov rooj zaum npauj npaim li qub
- Quality tswj rau txhua daim ntawm npauj npaim valve
Cov yam ntxwv tseem ceeb ntawmHluav taws xob npauj npaim li qub
- Kev tsim kho kom haum ua rau muaj qhov hnyav, tsawg qhov chaw hauv kev cia thiab kev teeb tsa.
- Centric ncej txoj hauj lwm, 100% bi-directional npuas nruj, uas ua rau installation tau ntawm txhua qhov kev taw qhia.
- Tag nrho lub cev bore muab tsis tshua muaj zog txaus.
- Tsis muaj kab noj hniav hauv cov dej ntws, uas ua rau nws yooj yim los ntxuav thiab tua kab mob rau cov dej haus thiab lwm yam.
 | NORTECH Resilient zaum npauj npaim valve pinless tsim |  |
thov xa mus raupeb catalog ntawm npauj npaim li qubkom paub meej lossis tiv tauj peb pab pawg muag khoom ncaj qha.
Hom kev ua haujlwm rauHluav taws xob npauj npaim li qub
| tuav lever |
|
| Phau ntawv gearbox |
|
| Pneumatic actuator |
|
| Hluav taws xob actuator |
|
| Dawb qia ISO5211 mouting ncoo |
|
Technical specification ntawm hluav taws xob npauj npaim li qub
Cov qauv:
| Tsim thiab Chaw Tsim Khoom | API609/EN593 |
| ntsej muag | ISO 5752 / EN558-1 series 20 |
| Flange kawg | ISO1092 PN6/PN10/PN16/PN25, ANSI B16.1/ANSI B 16.5 125/150 |
| Kev ntsuas siab | PN6 / PN6 / PN16 / PN25, ANSI Chav Kawm 125/150 |
| Kev kuaj thiab tshuaj xyuas | API 598/EN12266/ISO5208 |
| Actuator mounting ncoo | ISO 5211 |
Cov khoom siv tseem ceeb of Hluav taws xob npauj npaim valve:
| Yam khoom | Khoom siv |
| Lub cev | Ductile hlau, carbon hlau, stainless hlau, duplex stainless hlau, Monel, Alu-bronze |
| Disc | Hlau nickel coated, ductile hlau nylon coated / Alu-bronze / stainless hlau / duplex / Monel / Hasterlloy |
| Liner | EPDM / NBR / FPM / PTFE / Hypalon |
| Qe | Stainless hlau / Monel / Duplex |
| Bushing | PTFE |
| Bolts | Stainless hlau |
Valve lub cev cov ntaub ntawvof Hluav taws xob npauj npaim li qub
| Hlau hlau |
|
|
| Stainless hlau |
|
|
| Alu-bronze |
|
|
Valve disc cov ntaub ntawv of Hluav taws xob npauj npaim valve
| Hlau nickel coated |
|
|
| Cov hlau nylon coated |
|
|
| Hlau PTFE lined |
|
|
| Stainless hlau |
|
|
| Duplex stainless hlau |
|
|
| Alu-bronze |
|
|
| Hasterlloy-C |
|
|
Rubber lub tes tsho linerntawmHluav taws xob npauj npaim valve
| NBR | 0 ° C ~ 90 ° C | Aliphatic hydrocarbons (roj, tsis tshua muaj ntxhiab muaj roj, gasses), dej hiav txwv, compressed cua, hmoov, granular, nqus tsev, roj mov |
| EPDM | -20 ° C ~ 110 ° C | Dej dav dav (kub-, txias-, hiav txwv-, ozone-, ua luam dej-, kev lag luam-, thiab lwm yam) Tsis muaj zog acids, tsis muaj ntsev ntsev, cawv, ketones, qaub gasses, kua qab zib |
| Sanitary EPDM | -10 ° C ~ 100 ° C | Cov dej haus, khoom noj khoom haus, dej haus uas tsis muaj chlorined |
| EPDM-H | -20 ° C ~ 150 ° C | HVAC, dej txias, khoom noj khoom haus & kua txiv qab zib |
| Viton | 0 ° C ~ 200 ° C | Ntau aliphatic, muaj ntxhiab thiab halogen hydrocarbons, kub gasses, dej kub, chav, inorganic acid, alkali |
